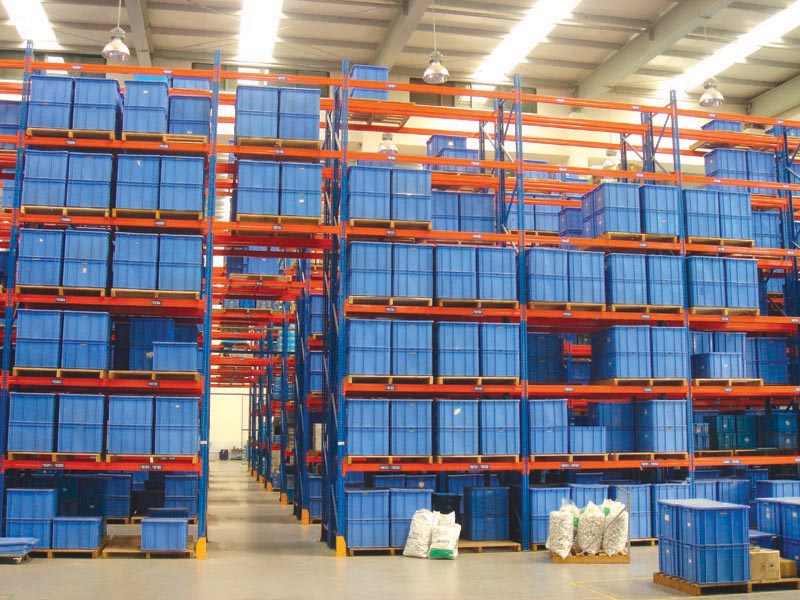

Weight type rack used cold-rolled deformed steel making, column by 80/90/100 * 60/70 ohm type steel surface of punching rhombic hole member; the beam is composed of 80 * 50-100 * 50-120 * 50-140 * 50-160*50 hold welding beam connection pendant made; to put goods layer can be matched: laminate, steel pallets, wooden pallets, plastic pallets.

The general use of the tray instead of laminates convenient forklift handling. Load weight of 1 tons -5 tons, the surface electrostatic spray, waterproof and anti corrosion ability, high safety coefficient, inserting type combination, without screws and welding, the assembly is convenient, the size can be done with the set with. Make full use of space, improve storage capacity, can be designed according to customer requirements.

Design basis:

First of all must be palletized unit of work, will the goods packaging and weight characteristics of group of disc, determine the tray type, specification, size and single supporting load and high pile (single supporting the weight of goods is generally less than 2000kg), and then determine the span and depth, layer spacing shelf unit, according to the largest fork warehouse roof truss under the effective height along and forklift high determine shelf height. Shelf unit span is generally less than 4m, within 1.5m depth, low, high warehouse shelves height of less than 12m in general, ultra high warehouse shelves height of less than 30m in general (such basic are the automated warehouse warehouse shelf, high total within several segments by 12m column.). Such warehouse, low, high warehouse is mostly used forward type battery forklift, battery forklift, balance weight three to the forklift access operation, shorter shelf can be used electric stacker, ultra high warehouse access operations for stacking machine. High utilization rate of space of the shelf system, access to flexible, combined with computer management and control, can basically meet the requirements of modern logistics system.

The scope of application:

Widely used in the manufacturing, the third party logistics and distribution center and other fields, which is suitable for multi variety and small batch of goods, but also suitable for few varieties and large quantities of goods. Such high shelves in warehouse and ultra high warehouse in most applications (shelf automated warehouse in mostly used such shelf). In addition, in order to improve space utilization, channel width can be reduced, with a special push up exercise on the track, so that the vertical storage space, which has become alleys rack.
